LM4558 DUAL LOW NOISE OPERATIONAL AMPLIFIERS
1、General Description The LM4558 consists of two high performance operational amplifiers. The IC features high gain, low equivalent input noise voltage, high input resistance, excellent channel separation, wide range of operating voltage and internal frequency compensation. It can work with ± 18V maximum power supply voltage or single power supply up to 36V.The LM4558 is available in DIP-8 and SOP-8 packages. | 2、Features
3、Applications
|

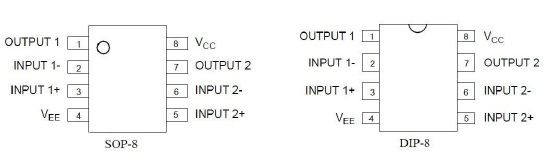

| 4、Functional Block Diagram | 5、Pin Configuration |
 |  |
貨物主要參數 | 訂貨現況 | 短信通道數 | 任務交流電壓范圍 (V) | 增加收益上行寬帶積 | 動態瞬時電流/路通道 | 動態平衡電壓值 （mV） | 平衡性電流電壓溫漂 （μV/°C） | 效果偏置交流電 （nA） | 封口 |
| LM4558 | 量產 | 2 | 4.0-36 | 5.5MHz | 2.25mA | 5 | 5 | 400 | SOP8/DIP8 |
